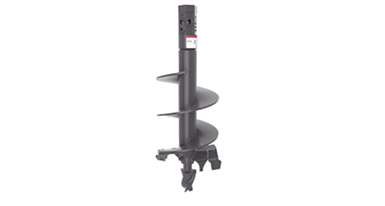

Augers Overview
Auger Attachments give you access to smaller spaces without sacrificing power. Whether you are drilling into hard permafrost or soft desert sand there is an auger that's right for you.
Specifications & Details
| Medium Duty Augers | ||||||||||||||||||||||||||||
| Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
| HDF | 6" | 48" | 42 lb | These augers are made for light to moderate ground conditions. They feature a fabricated boring head with hardened bolt-on gage (outside) and wisdom (inside) teeth, as well as hardened fishtail point. | ||||||||||||||||||||||||
| 9" | 48" | 86 lb | ||||||||||||||||||||||||||
| 12" | 48" | 120 lb | ||||||||||||||||||||||||||
| 18" | 48" | 160 lb | ||||||||||||||||||||||||||
| 24" | 48" | 278 lb | ||||||||||||||||||||||||||
| 30" | 48" | 325 lb | ||||||||||||||||||||||||||
| 36" | 48" | 443 lb | ||||||||||||||||||||||||||
| Heavy Duty Augers - HDC | ||||||||||||||||||||||||||||
| Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
| HDC | 6" | 48" | 45 lb | These augers are made for difficult ground conditions, compacted soils, heavy clay, frozen ground and fracturable rock. | ||||||||||||||||||||||||
| 9" | 48" | 98 lb | ||||||||||||||||||||||||||
| 12" | 48" | 128 lb | ||||||||||||||||||||||||||
| 18" | 48" | 204 lb | ||||||||||||||||||||||||||
| 24" | 48" | 272 lb | ||||||||||||||||||||||||||
| 30" | 48" | 312 lb | ||||||||||||||||||||||||||
| 36" | 48" | 430 lb | ||||||||||||||||||||||||||
| 42" | 48" | 460 lb | ||||||||||||||||||||||||||
| 48" | 48" | 550 lb | ||||||||||||||||||||||||||
| Rock Augers | ||||||||||||||||||||||||||||
| Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
| ROCK | 6" | 48" | 82 lb | These augers are made for solid, fracturable rock, frozen ground, asplalt, and compact soils. | ||||||||||||||||||||||||
| 9" | 48" | 110 lb | ||||||||||||||||||||||||||
| 12" | 48" | 137 lb | ||||||||||||||||||||||||||
| 18" | 48" | 192 lb | ||||||||||||||||||||||||||
| 24" | 48" | 285 lb | ||||||||||||||||||||||||||
| 30" | 48" | 315 lb | ||||||||||||||||||||||||||
| 36" | 48" | 414 lb | ||||||||||||||||||||||||||
| Heavy Duty Augers - HTF | ||||||||||||||||||||||||||||
| Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
| HTF | 18" | 48" | 144 lb | These augers are made for tree and shrub planting. | ||||||||||||||||||||||||
| 24" | 48" | 198 lb | ||||||||||||||||||||||||||
| 30" | 48" | 264 lb | ||||||||||||||||||||||||||
| 36" | 48" | 349 lb | ||||||||||||||||||||||||||
| 42" | 48" | 330 lb | ||||||||||||||||||||||||||
| 48" | 48" | 428 lb | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Augers - Medium Duty HDF Style Features
- Fabricated boring head with hardened bolt-on gage (outside) and wisdom (inside) teeth, as well as a hardened fishtail point.
- Equipped with heavy-duty double flighting.
Augers - Heavy Duty HDC Style
- Heavy duty cast steel boring head, hardened drive-in gauge (outside) and wisdom (inside) teeth.
- Equipped with hardened fishtail point and heavy-duty, double flighting.
Rock Augers - Bullet Tooth
- Bullet-style teeth and a fabricated boring head, as well as heavy-duty single flighting.
- 2" hexagon collar only and is available in 4' length.
- .75" thick bottom flight and a hardface outer edge.
Augers - Heavy Duty HTF Style
- 2" diameter design with a fabricated boring head and hardened bolt on gauge (outside) and wisdom (inside) teeth
- Equipped with hardened fishtail point and heavy-duty double flighting.
Auger Drive Features
- Maximum output torque 1,998 lb-ft
- 2 9/16" round output shaft
- Dual pivot with lockout pin to single pivot
- Maximum 3,000 psi
- 30° maximum auger diameter
What size auger bit do I need for my mini skid steer?
The size of the auger bit you need depends on the type of job you're performing and the size of the holes required. Common sizes range from 6 inches to 36 inches in diameter.
How do I choose the right auger drive for my mini skid steer?
Selecting the right auger drive involves considering the hydraulic flow and pressure specifications of your mini skid steer, the type of soil or material you'll be drilling into, and the size of the auger bits you'll be using.
Can I use an auger attachment from another brand with my mini skid steer?
Yes, many auger attachments are designed to be compatible with various brands of mini skid steers, but it's important to verify compatibility based on mounting systems and hydraulic requirements.
How do I maintain my auger and auger drive?
Regular maintenance includes checking hydraulic hoses and connections, greasing pivot points, inspecting the auger bit for wear or damage, and ensuring that the drive unit is clean and free of debris.
What types of soil or materials can augers for mini skid steers handle?
Augers for mini skid steers can handle a wide range of materials, including dirt, clay, sand, gravel, and even some types of rock, depending on the auger bit and drive's power.
How deep can an auger for a mini skid steer dig?
The depth an auger can reach depends on the length of the auger bit and any extensions used. Standard auger bits can typically dig up to 4 feet deep, but extensions can allow for deeper holes.
What safety precautions should I take when using an auger attachment?
Safety precautions include wearing appropriate personal protective equipment, ensuring the area is clear of underground utilities, operating at safe speeds, and following the manufacturer's guidelines for use and maintenance.
How do I attach and detach the auger drive on my mini skid steer?
Attaching and detaching the auger drive involves aligning the quick attach mounting plate with the attachment, securing it in place with locking pins or levers, and connecting the hydraulic hoses.
Can I rent an auger attachment for my mini skid steer?
Yes, many equipment rental companies offer auger attachments for mini skid steers, providing a cost-effective solution for short-term or infrequent projects.
What are the benefits of using an auger attachment with a mini skid steer?
Using an auger attachment with a mini skid steer increases efficiency and productivity in drilling operations, allows for precise hole placement, reduces manual labor, and is suitable for a variety of applications such as landscaping, construction, and agricultural projects.
Boxer parts and service are provided through our network of Boxer Authorized Service Dealers. Please use our Dealer Locator to find the closest dealer near you. If you are unable to find a dealer in your area, please call our Parts Department at (800) 255-8839.
Be sure to ask about our Boxer Maintenance Kits. Maintenance kits include a service reminder decal, synthetic blend replacement engine oil (10W30 Oil for gas-powered machines and 15W40 Oil for diesel machines), engine oil filter, fuel filter, air filter and hydraulic filter for gas and diesel engines. A mid-wheel maintenance kit and an idler wheel maintenance kit also have been introduced, containing all of the parts to rebuild a mid-wheel or the idler wheels, respectively. All maintenance kits are packaged with Boxer recommended OEM replacement components.
For attachments, warranty begins on the date the product is purchased by the original purchaser, first lease and/or rental of unit, or 6 months after invoiced ship date if no registration has been submitted. Once the warranty period has begun it cannot be stopped or interrupted for any reason, and all warranties are non-transferrable. If leased or rented by rental yard first, then sold warranty will not transfer, warranty ends at that point.
Owner Responsibilities
Following or performing the required or recommended preventive maintenance and
following the safety procedures and guidelines with respect to the use and maintenance
of the
Covered Product as described in the operators’ manual, including lubricating the
machine as specified in the operator’s manual.
Keeping all bolts torqued to specifications, and inspecting all bolts, fittings, and hoses
daily.
Keeping all safety equipment installed and in working condition.
Keeping all filters clean.
Repairing all minor hydraulic leaks such as, loose hoses and fittings.
Replacing any decals that may be damaged or illegible.
Using only qualified operators who have read and thoroughly understand the operator’s
manual.
Returning Covered Products to the dealer for warranty work, follow up inspections and
service bulletin updates.
Adhering to the terms and conditions of this Warranty, including returning a Covered
Product to the dealer for warranty work within 30 days from the date of any failure of the
Covered Product.
Adhering to the service bulletin updates and requirements.
Operating the Covered Product in accordance with the applicable design specifications.
