Equipment Overview

The small but powerful Boxer 385D can handle “big machine” tasks while providing ease of access due to the smaller footprint. Able to handle a full complement of attachments, the diesel-powered 385D allows you to minimize hand labor, reduce overhead and increase productivity. At 35" (889 mm) wide, the unit can fit through a standard gate. The two-pump, 2,800 psi (193 bar) hydraulic operating system develops optimum hydraulic flow to run the machine’s auxiliary and propulsion systems, providing enough power to handle full-size attachments. A dedicated oil cooler to better manage hydraulic heat generation. With a universal compact utility loader mounting plate and quick-attach system, you can quickly and easily switch between any standard attachments.

Specifications & Details

SPECIFICATION  US METRIC
Engine Type Kubota
Cooling System  Air-Cooled
HP/kW 24.8 HP  18.49 kW
Fuel Type Diesel
Fuel Capacity  4.5 Gallons  17.1 Litres
Hydraulic Capacity  16 Gallons 60.6 Litres
System Flow (Total) 11 GPM  41.6 L/min
Hydraulic Flow (Aux) 8.0 GPM  30.3 L/min
Hydraulic Flow (Drive) 3.0 GPM 11.4 L/min
System Pressure  2800 PSI  19305.3 kPa
Engine Warranty 3 years
Product Warranty  1 year
Track Gauge 27.5" 699 mm
Track Width  7" 180 mm
Weight (No Attachment) 1913 lb 867.72 kg
Length (No Attachment) 68" 1727 mm
Length (w/Bucket) 93" 2362 mm
Width (Overall)  35" 889 mm
Height (Boom Lowered) 48" 1219.2 mm
Height (Boom Raised)  92" 2337 mm
Hinge Pin Height  70" 1778 mm
Dump Height 54" 1372 mm
Dump Angle  34 Degrees
Reach  28" 711 mm
Tip Capacity  1,100 lb  498.9 kg
Operating Capacity, 35% of tip load 385 lb  174.6 kg
Ground Clearance 5" 127 mm
Ground Speed 3.4 MPH  5.5 km/h
Ground Pressure  3.8 PSI  26.2 kPa

Mini skid steers are compact yet mighty machines designed to tackle a wide range of tasks with precision and efficiency. Their small size makes them ideal for working in confined spaces and navigating tight corners, making them a favorite among landscapers, contractors, and homeowners alike. Below are answers to some of the most frequently asked questions regarding Mini Skid Steers:

What is a mini skid steer?

A mini skid steer, also known as a compact utility loader or mini loader, is a small, versatile machine designed for a variety of tasks in construction, landscaping, agriculture, and other industries. It typically features a compact size, articulated steering, and a wide range of attachments for different applications.

What are the main uses of mini skid steers?

Mini skid steers are commonly used for tasks such as digging, trenching, hauling, grading, landscaping, snow removal, and material handling. Their compact size allows them to work efficiently in tight spaces and on various terrains.

How do mini skid steers differ from larger skid steers?

Mini skid steers are smaller and lighter than their larger counterparts, making them more maneuverable and suitable for smaller jobs and confined spaces. They typically have lower horsepower and lifting capacities but offer versatility and ease of operation.

What are the advantages of using a mini skid steer?

Some advantages of mini skid steers include their compact size, maneuverability, versatility, ease of transport, and ability to use a wide range of attachments. They can access tight spaces where larger equipment may not fit and are suitable for both indoor and outdoor applications.

What maintenance is required for mini skid steers?

Regular maintenance is crucial to keep mini skid steers in optimal condition. This includes checking fluid levels, inspecting tires and tracks, greasing pivot points, cleaning air filters, and inspecting attachments for wear and damage. Following the manufacturer’s maintenance schedule and guidelines is essential for prolonging the machine’s lifespan.

Boxer parts and service are provided through our network of Boxer Authorized Service Dealers. Please use our Dealer Locator to find the closest dealer near you. If you are unable to find a dealer in your area, please call our Parts Department at (800) 255-8839.

Be sure to ask about our Boxer Maintenance Kits. Maintenance kits include a service reminder decal, synthetic blend replacement engine oil (10W30 Oil for gas-powered machines and 15W40 Oil for diesel machines), engine oil filter, fuel filter, air filter and hydraulic filter for gas and diesel engines. A mid-wheel maintenance kit and an idler wheel maintenance kit also have been introduced, containing all of the parts to rebuild a mid-wheel or the idler wheels, respectively. All maintenance kits are packaged with Boxer recommended OEM replacement components.

FIND A DEALER REQUEST QUOTE

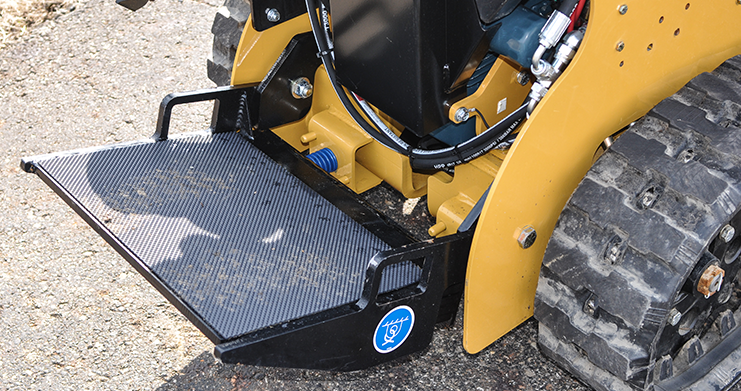

Boxer 385 Operator's Platform
The 385 operator platform design helps with operator comfort throughout the day and provides stability when working on uneven terrain.
Boxer 385 Gas Gauge
The visibility and simplicity of the fuel gauge are key, allowing operators to glance quickly and ascertain whether additional fuel is required.
Boxer 385D Quick Attach System
The 385D's quick attach feature allows operators to swiftly and effortlessly switch between various attachments, enhancing versatility and efficiency on the job site.

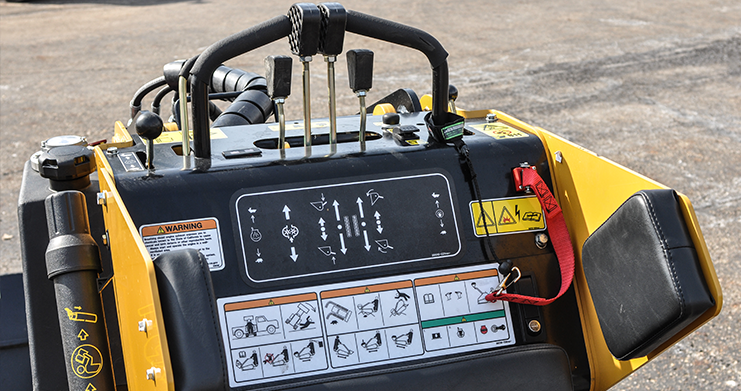

Boxer 385D Control Feature
Joystick controls on the Boxer 385D loaders offer operators intuitive and precise handling,

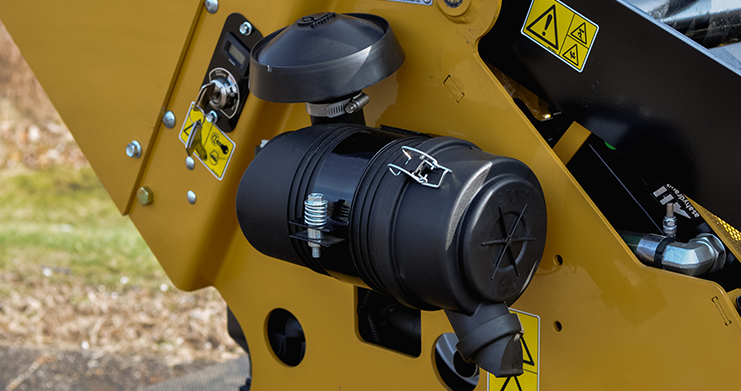

Air Filter
Air Filter located for Easy Maintenance

With its compact size and powerful hydraulic system, the 385D offers exceptional lifting capacity and precise control, making it an ideal choice for tight spaces and demanding job sites.

Boxer 385D in Action
