Equipment Overview

Powered by a 24.8-HP (18.5-kW) diesel engine and producing 11.3 gpm (43 l/min) of auxiliary hydraulic flow from the single remote auxiliary lines, this model provides all the power needed for tough jobs. The 600HD features a 74″ (188 cm) hinge pin height and a 531 lb (241 kg) rated operating capacity, with a tip capacity of 1,535 lb (695 kg) and fixed track width of 34.7” (88 cm). The 600HD boasts a variety of features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated hydraulic components, tightened boom tolerances and a whole lot more!

Specifications & Details

SPECIFICATION  US METRIC
Engine Type Kubota
Cooling System  Liquid
HP/kW 24.8 HP  18.5 kW
Fuel Type Diesel
Fuel Capacity  4.5 Gallons  17.1 Litres
Hydraulic Capacity  16 Gallons 60.6 Litres
System Flow (Total) 22 GPM  83 L/min
Hydraulic Flow Aux (Hi) 11.3 GPM  43 L/min
Hydraulic Flow (Drive) 10.7 GPM  41 L/min
System Pressure  3000 PSI  20684 kPa
Engine Warranty  2 years, 2000 Hours
Product Warranty 1 year, 1000 Hours
Track Gauge  27" 686 mm
Track Width  7" 180 mm
Weight (No Attachment)  2240 lb  1015 kg
Length (No Attachment)  73.4"  1864 mm
Length (w/Bucket)  96" 2438 mm
Width (Overall)  34.7" 881 mm
Height (Boom Lowered)  52.7" 1339 mm
Height (Boom Raised)  98"  2489 mm
Hinge Pin Height  74" 1880 mm
Dump Height  56" 1422 mm
Dump Angle  37 Degrees
Reach  34" 864 mm
Tip Capacity  1535 lb  695 kg
Operating Capacity, 35% of tip load  531 lb  241 kg
Ground Clearance  5" 127 mm
Ground Speed  4.3/3.1 MPH 7.0/5.0 km/h
Ground Pressure 5.36 PSI  37 kPa

Mini skid steers are compact yet mighty machines designed to tackle a wide range of tasks with precision and efficiency. Their small size makes them ideal for working in confined spaces and navigating tight corners, making them a favorite among landscapers, contractors, and homeowners alike. Below are answers to some of the most frequently asked questions regarding Mini Skid Steers:

What is a mini skid steer?

A mini skid steer, also known as a compact utility loader or mini loader, is a small, versatile machine designed for a variety of tasks in construction, landscaping, agriculture, and other industries. It typically features a compact size, articulated steering, and a wide range of attachments for different applications.

What are the main uses of mini skid steers?

Mini skid steers are commonly used for tasks such as digging, trenching, hauling, grading, landscaping, snow removal, and material handling. Their compact size allows them to work efficiently in tight spaces and on various terrains.

How do mini skid steers differ from larger skid steers?

Mini skid steers are smaller and lighter than their larger counterparts, making them more maneuverable and suitable for smaller jobs and confined spaces. They typically have lower horsepower and lifting capacities but offer versatility and ease of operation.

What are the advantages of using a mini skid steer?

Some advantages of mini skid steers include their compact size, maneuverability, versatility, ease of transport, and ability to use a wide range of attachments. They can access tight spaces where larger equipment may not fit and are suitable for both indoor and outdoor applications.

What maintenance is required for mini skid steers?

Regular maintenance is crucial to keep mini skid steers in optimal condition. This includes checking fluid levels, inspecting tires and tracks, greasing pivot points, cleaning air filters, and inspecting attachments for wear and damage. Following the manufacturer’s maintenance schedule and guidelines is essential for prolonging the machine’s lifespan.

Boxer parts and service are provided through our network of Boxer Authorized Service Dealers. Please use our Dealer Locator to find the closest dealer near you. If you are unable to find a dealer in your area, please call our Parts Department at (800) 255-8839.

Be sure to ask about our Boxer Maintenance Kits. Maintenance kits include a service reminder decal, synthetic blend replacement engine oil (10W30 Oil for gas-powered machines and 15W40 Oil for diesel machines), engine oil filter, fuel filter, air filter and hydraulic filter for gas and diesel engines. A mid-wheel maintenance kit and an idler wheel maintenance kit also have been introduced, containing all of the parts to rebuild a mid-wheel or the idler wheels, respectively. All maintenance kits are packaged with Boxer recommended OEM replacement components.

FIND A DEALER REQUEST QUOTE

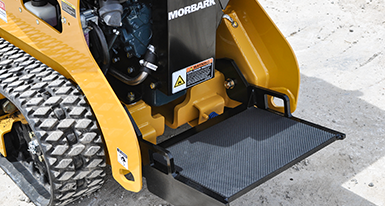

Boxer 600HD Operator Platform
The 600HD operator platform design helps with operator comfort throughout the day and provides stability when working on uneven terrain.

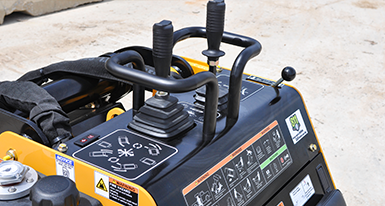

600HD Boxer Joystick Controls
Boxer 600HD Compact Utility Loader Track
The 600HD features a unique hydraulically expandable undercarriage — from 35″ (89 cm) to 43.5″ (111 cm) — allowing the operator to retract the undercarriage for passages as narrow as 36″ (91 cm) wide then expand for increased stability while in operation by simply pulling or pushing a control lever.

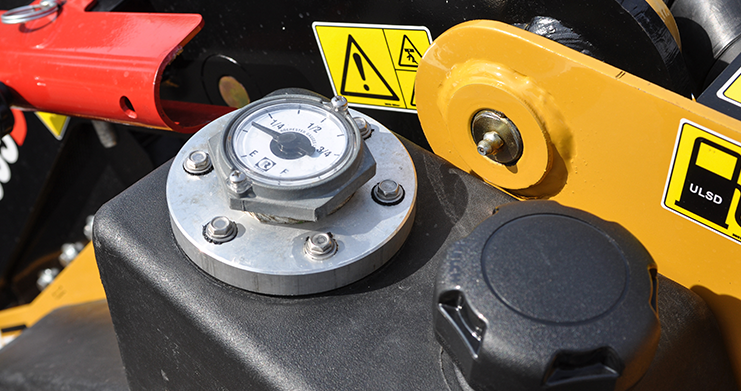

Gas Gauge
The visibility and simplicity of the fuel gauge are key, allowing operators to glance quickly and ascertain whether additional fuel is required.

The Boxer 600HD Mini Skid Steer offers a perfect balance of power and maneuverability, making it an ideal choice for a variety of job site tasks.

Boxer 600HD Equipment Walkaround
