Equipment Overview

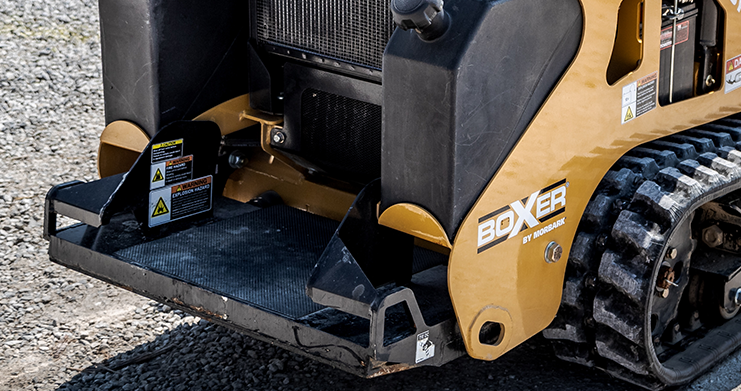

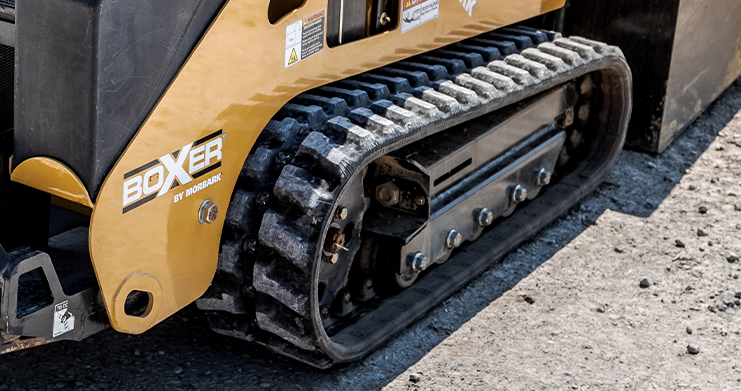

The Boxer 700HDX features a unique hydraulically expandable undercarriage — from 35″ (89 cm) to 43.5″ (111 cm) — allowing the operator to retract the undercarriage for passages as narrow as 36″ (91 cm) wide then expand for increased stability while in operation by simply pulling or pushing a control lever. With a 24.8-HP (18.5-kW) diesel engine and 11.3 gpm (8.7 lpm) hydraulic auxiliary flow, the 700HDX provides all the power you need for tough jobs. The 700HDX boasts a variety of features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated engine and hydraulic components, tightened boom tolerances and a whole lot more!
Specifications & Details
| SPECIFICATION | US | METRIC |
| Engine Type | Kubota | |
| Cooling System | Liquid | |
| HP/kW | 24.8 HP | 18.5 kW |
| Fuel Type | Diesel | |
| Fuel Capacity | 9 Gallons | 34 Litres |
| Hydraulic Capacity | 24 Gallons | 91 Litres |
| System Flow (Total) | 27.1 GPM | 103 L/min |
| Hydraulic Flow Aux (Hi/Lo) | 11.3/8.7 GPM | 43/33 L/min |
| Hydraulic Flow (Drive) | 7.1 GPM | 27 L/min |
| System Pressure | 3000 PSI | 20684 kPa |
| Engine Warranty | 2 years | |
| Product Warranty | 1 year | |
| Track Gauge | 33.75" | 857 mm |
| Weight (No Attachment) | 2880 lb | 1306 kg |
| Length (No Attachment) | 77" | 1956 mm |
| Length (w/Bucket) | 96" | 2438 mm |
| Width (Fully Retracted) | 34.5" | 876 mm |
| Width (Fully Extended) | 43.5" | 1105 mm |
| Height (Boom Lowered) | 54" | 1372 mm |
| Height (Boom Raised) | 98" | 2489 mm |
| Hinge Pin Height | 77" | 1956 mm |
| Dump Height | 60" | 1524 mm |
| Dump Angle | 37 Degrees | |
| Reach | 34" | 864 mm |
| Tip Capacity | 2020 lb | 915 kg |
| Operating Capacity, 35% of tip load | 707 lb | 320 kg |
| Ground Clearance | 5" | 127 mm |
| Ground Speed | 4.5 MPH | 7.2 km/h |
| Ground Pressure | 4.21 PSI | 29.7 kPa |
Mini skid steers are compact yet mighty machines designed to tackle a wide range of tasks with precision and efficiency. Their small size makes them ideal for working in confined spaces and navigating tight corners, making them a favorite among landscapers, contractors, and homeowners alike. Below are answers to some of the most frequently asked questions regarding Mini Skid Steers:
What is a mini skid steer?
What are the main uses of mini skid steers?
How do mini skid steers differ from larger skid steers?
What are the advantages of using a mini skid steer?
What maintenance is required for mini skid steers?
Boxer parts and service are provided through our network of Boxer Authorized Service Dealers. Please use our Dealer Locator to find the closest dealer near you. If you are unable to find a dealer in your area, please call our Parts Department at (800) 255-8839.

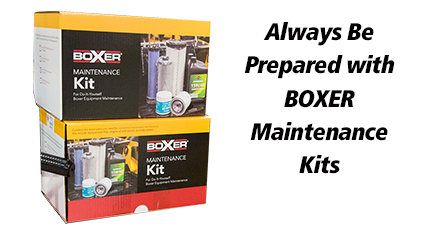

Be sure to ask about our Boxer Maintenance Kits. Maintenance kits include a service reminder decal, synthetic blend replacement engine oil (10W30 Oil for gas-powered machines and 15W40 Oil for diesel machines), engine oil filter, fuel filter, air filter and hydraulic filter for gas and diesel engines. A mid-wheel maintenance kit and an idler wheel maintenance kit also have been introduced, containing all of the parts to rebuild a mid-wheel or the idler wheels, respectively. All maintenance kits are packaged with Boxer recommended OEM replacement components.
